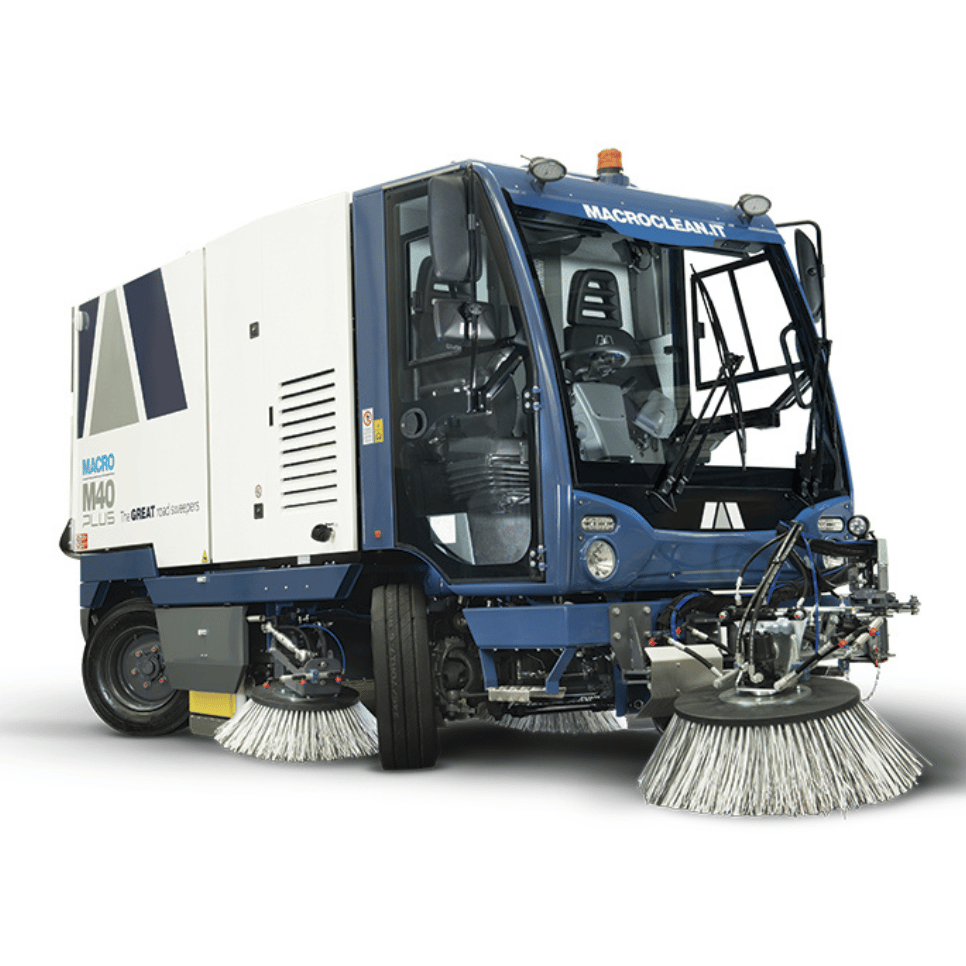

MACRO M40 PLUS
MACROCLEAN M40 PLUS machines are mechanical road sweepers that use the mechanical power of the brush to pick up the debris, as well as the vacuum fan to filter fine particulates and clean without raising dust.
Effective solutions for all applications and the exclusive, ample waste collection hopper make the MACROCLEAN M40 PLUS sweeper the perfect work tool for all application for city and industrial area.
Booking the demo now,
"Yes! I need more information..
TECHNOLOGY
Up to 3 times more powerful suction: works at a speed up to 3 times higher than traditional systems.
MECHANICAL SUCTION SYSTEM
Through the side brushes and the optional front brush (Mechanical phase), the debris is directed towards the large central roller brush, which takes care of lifting the dust from the ground.
Through a conveyor, combined with a pallet conveyor, the debris reaches the waste container thanks to the depressing action of the powerful rear turbine (suction phase).
The suction is also optimized, to allow complete suppression of dust, thanks to the large surface filters (also available with PM1 filtration level).
BENEFITS
Great collection capacity
MACROCLEAN street sweepers pick up huge amounts of waste. They are among the top mechanical vacuum sweepers for urban use in terms of load volume and effective weight (the M60 version boasts 6 cube metres of volume and 6,000 kg of effective weight).
High Productivity
The mechanical vacuum system offers a high hourly output rate thanks to its operating speed, which is up to three times faster than other sweeping systems, without raising dust. The 6 cubic metre and 6,000 kg weight capacity hopper ensures a longer working autonomy by reducing the downtime required to reach the dumping areas. The reduced fuel consumption help increase the work output by delaying refuelling operations.
Low management costs
CAN-bus is the communication system designed to balance the various machine functions to ensure the best performance of all units at any time. For instance, it checks the pressure of the central brush and keeps it constant, ensuring a longer lifetime of the brush.
Great picking capacity.
Combining brush and conveyor functions, it picks up huge amounts of both heavy and large debris.
High hourly output rate. Its big central roller brush and efficient conveyor system, the M60 operates at a speed three times faster than other picking systems.
Description
MACROCLEAN M60PLUS MECHANICAL ROADSWEEPER machines are mechanical vacuum street sweepers that use the mechanical power of the brush to pick up the debris, as well as the vacuum fan to filter fine particulates and clean without raising dust. MACROCLEAN M60PLUS MECHANICAL ROADSWEEPER is designed to pick up any type of debris, which may also be bulky, thanks to their central brush and vertical conveyor, ensuring operating efficiency even at high speed.
Their mechanical vacuum system is unique in terms of picking up huge amounts of debris without raising dust. The mechanical brush movement picks up all waste, then a powerful vacuum traps all dust inside a large filter. It is therefore a waterless sweeping function, which does not require water nor it leaves mud on the ground. The high-capacity hopper minimizes the dumping downtime and increases the cleaning hourly output rate.
WHERE TO USE

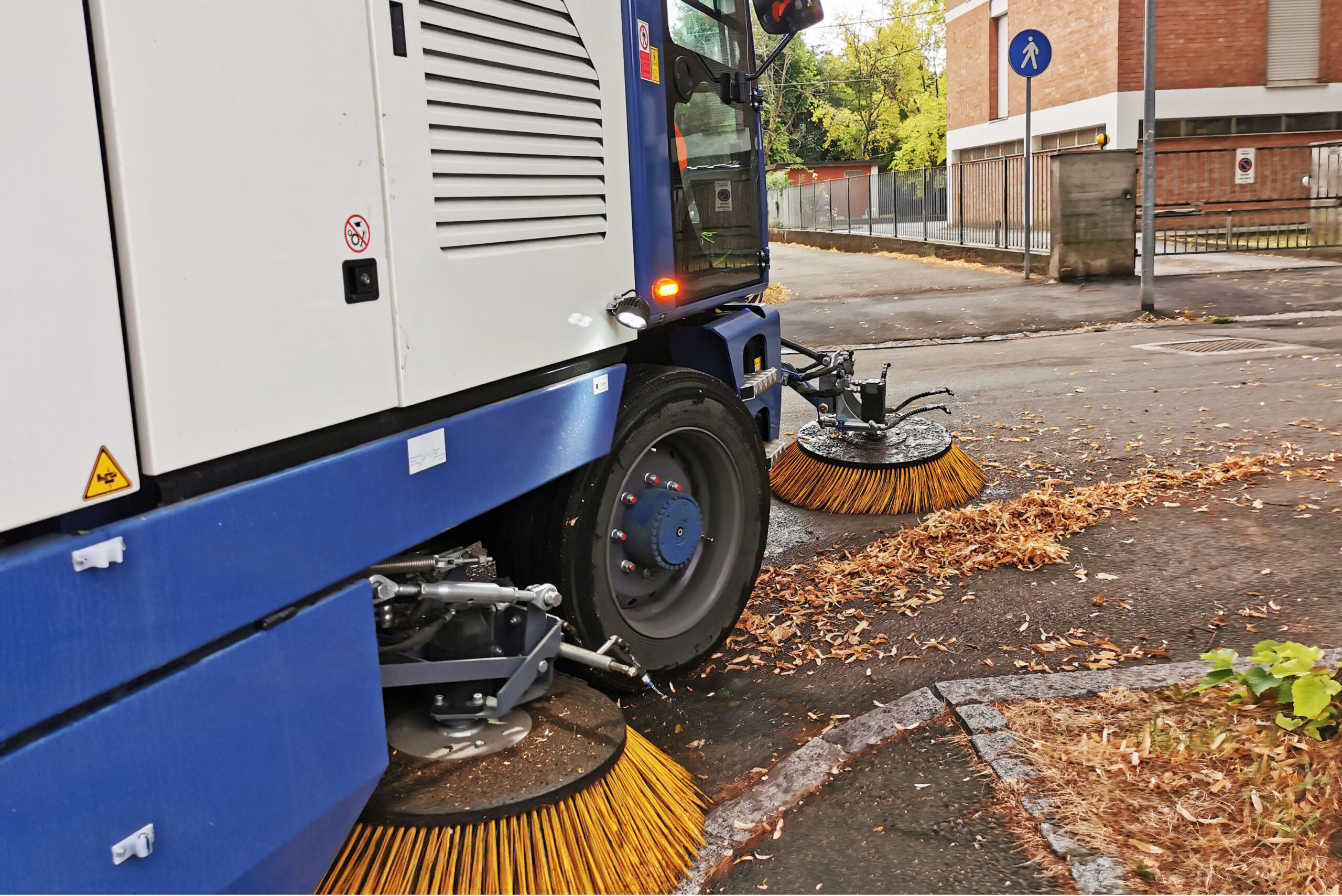

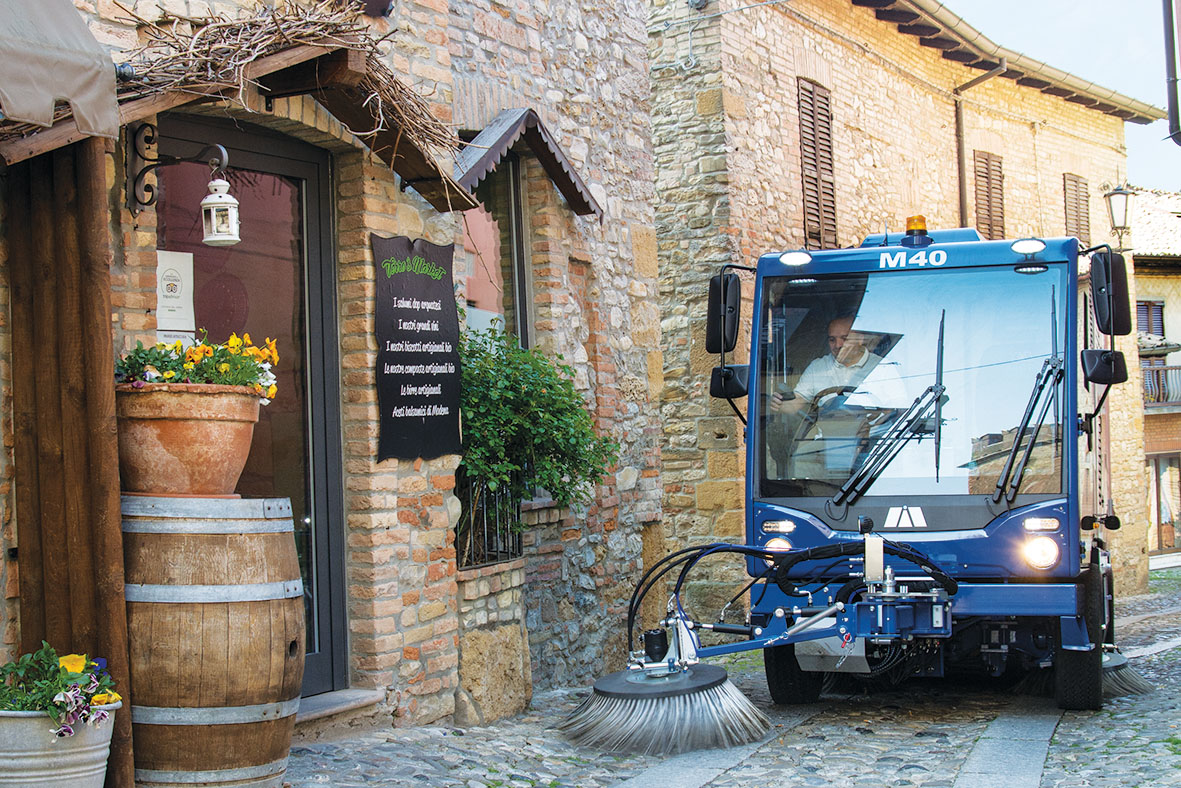

URBAN AREA
Ensuring the cleanliness of streets, squares, public parking lots and historic centers means ensuring an accurate and constant service throughout the year without negatively affecting the livability of the city, the well-being of citizens, and the safety of operators. The technology of the models designed to operate in this particular context is oriented toward four main objectives: simplicity of use, reduction of consumption, low environmental impact, and rapid return on investment.

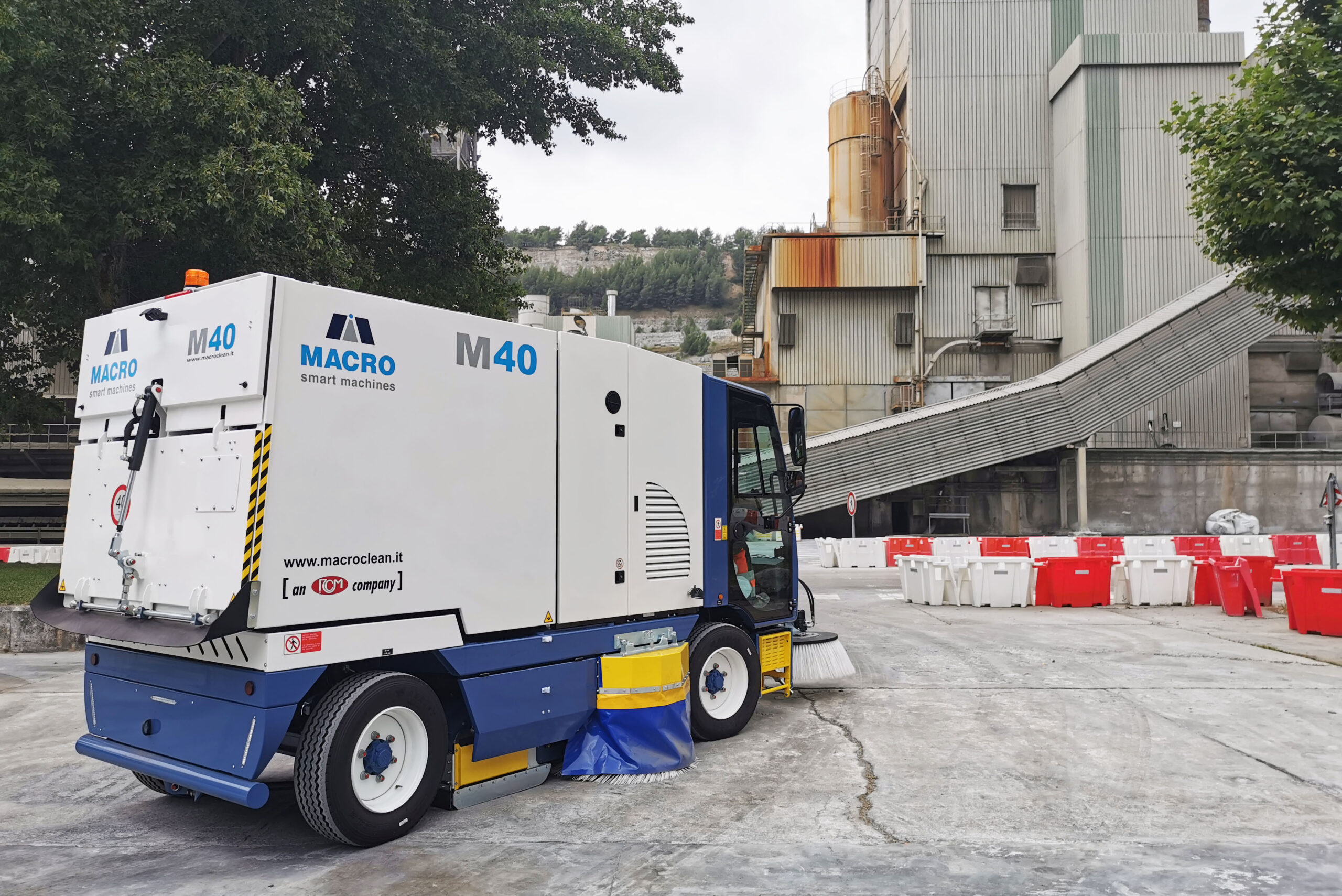

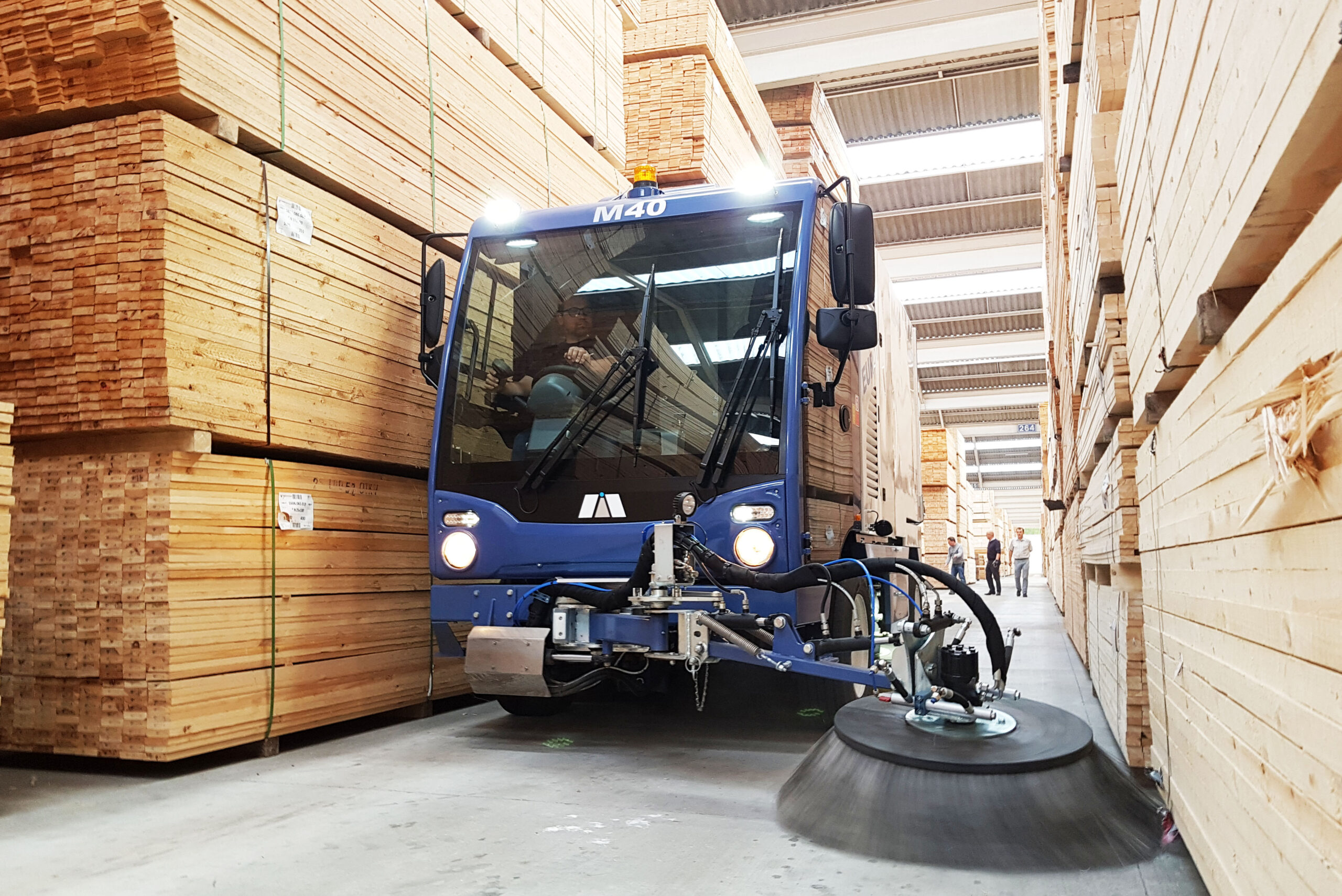

HEAVY-INDUSTRIAL AREA
The heavy industry and the extraction sectors feature areas covered with huge amounts of waste material and dust, which are a daily result of the working activities and need to be quickly removed without raising dust.
SEAPORT AND AIRPORT AREA
The dirty conditions and the types of areas that are typically found in seaports are quite different from each other, ranging from the presence of coarse material (pallet parts) to fine dust, from large free areas to areas with possible obstacles (railway tracks).
RACE TRACKS
During racetracks events, safety is essential to protect the drivers and the staff working on the site and performing different types of tasks. Firstly, safety means cleanliness of the track, but also all hospitality areas and parking spaces both along the track and inside the paddocks.
SPECIFICATIONS
SPECIFICATIONS
| SWEEPING WIDTH | (mm) | Detail |
|---|---|---|
| With central roll-brush only | mm | 1300 |
| With central roll-brush and right-hand side brush | mm | 1900 |
| With central roll-brush and 2 side brushes (standard) | mm | 2500 |
| With central brush, 2 side brushes and 3rd front brush (opt) | mm | 3300 |
| HOPPER AND WATER TANK | (mm) | Detail |
|---|---|---|
| Hopper volume | m3 | 4 |
| Net homologated payload | kg | 2500 |
| Hopper dumping height | m | 1,1 (opt÷2,10) |
| Water tank capacity (with optional water spraying system) | L | 400 / (opt 1220) |
VIDEO
VIDEO
VIDEO (1)
VIDEO (3)
VIDEO (2)
VIDEO (4)
DOWNLOAD
DOWNLOAD
PRODUCT INFORMATION
Related products

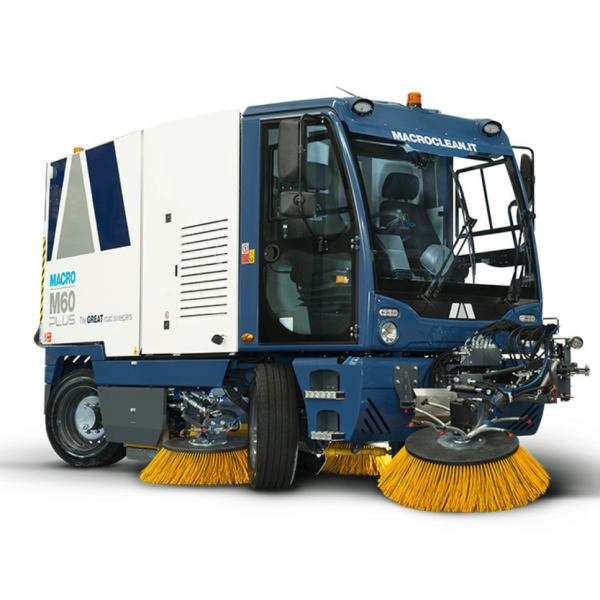

MACRO M60 PLUS
